Gnex Pharma

Automatic Advanced Servo Based PFS De Nesting Machine

Overview

Automatic Advanced Servo Based PFS De Nesting Machine

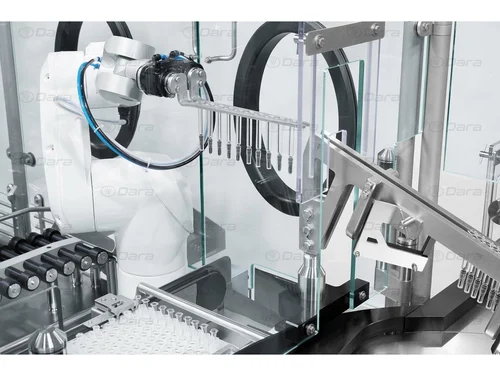

De-Nester is use to automatically unload PFS from its nest in quick and careful manner. The filled and plungered syringes tub is manually fed into de-nester infeed station.

A robot picks the syringes filled nest and places into operation station where syringes are discharged automatically from each row of nest and are fed into infeed track of plunger rod insertion and labeling machine.

Key Features

High speed 100/200/300

Servo PLC based Operation

Accurate label placement

No change parts requirement

Very less down time for change over

One Touch Speed Synchronization

Product Details

Salient Features

  • An inbuilt PLC and HMI for control and operation of machine
  • Output – upto 12,000 PFS/Hour
  • Equipped with interlocking system with plunger rod insertion machine with respect to high and low level of PFS in its track
  • Complete servo driven operation from nest transfer to PFS Loading
  • Machine Dimensions: 1250 mm (L) x 900 mm (W) x 1500 mm (H) (Approx.)
