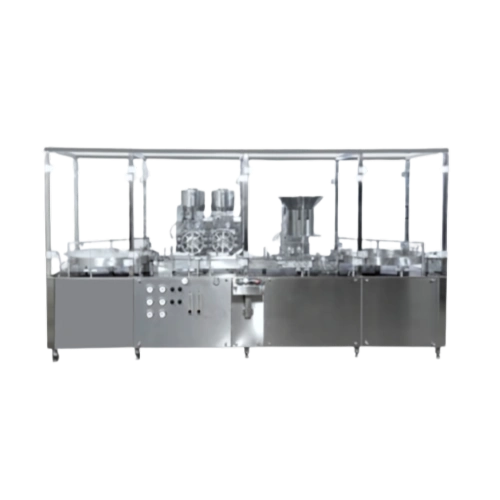

Automatic High Speed Multi Axis Servo Driven Injectable Dry Powder Filling with Pick and Place Type Rubber Stoppering Machines. Models: GNXHPF-150S & GNXHPF-300S
Automatic High Speed Multi Axis Servo Driven Injectable Dry Powder Filling with Pick and Place Type Rubber Stoppering Machines. Models: GNXHPF-150S & GNXHPF-300S
Automatic High Speed Multi-Axis Servo Driven Injectable Dry Powder Filling with Pick and Place Type Rubber Stoppering Machine. 100% servo driven machine where each and every moving part is driven by its own servo motor which gives precision in vial handling.
This machine is equipped with automatic rejection system as well as vial sampling system. It comes with centralised piston adjustment powder wheel for fill weight setting which eliminates fill volume changeover time.
High speed 100/200/300
Servo PLC based Operation
Accurate label placement
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Output/Hour
7,200 Fills for Single Dose
3,600 Fills for Double Dose
2,400 Fills for Triple Dose
1,800 Fills for Four Dose
Fill Capacity
50 mg to 1.5 gm In single dose with help of extra change parts and 1.5 gm to 5 gm by double, triple and four dose depending upon bulk density of powder
Vial Sizes
5 ml to 50 ml
Rubber Stopper Sizes
20 mm
Rubber Stoppering Mechanism
Servo Driven Pick and Place System
Machine Dimensions
3250 mm (L) X 1050 mm (W) X 2100 mm (H) (Approx.)
Output/Hour
14,400 Fills for Single Dose
7,200 Fills for Double Dose
4,800 Fills for Triple Dose
3,600 Fills for Four Dose
Fill Capacity
50 mg to 1.5 gm In single dose with help of extra change parts and 1.5 gm to 5 gm by double, triple and four dose depending upon bulk density of powder
Vial Sizes
5 ml to 50 ml
Rubber Stopper Sizes
20 mm
Rubber Stoppering Mechanism
Servo Driven Pick and Place System
Machine Dimensions
5000 mm (L) X 2000 mm (W) X 2750 mm (H) (Approx.)
Salient Features
- Fully automatic filling and stoppering operation in one machine
- 12 ports powder wheel with centralized piston adjustment system
- Servo based pick & place type rubber stoppering system
- Vial sampling system
- Rejection system for no rubber stoppers on vial
- New design powder hopper with primary and secondary hoppers
- Temperature and humidity indicator (Digital Type) with interlocks
- Toughened glass safety cabinet with SS structure
- Safety clutch system to avoid vial breakage
- Flush mounted gauge & regulator for easy setting
- Separate D.C. controller for vibratory rubber stopper bowl
- All contact parts are easily removable for autoclaving / sterilization
- Heavy duty base frame to ensure smooth & vibration free operation
- 3 nos. NVPC ports at customer’s desired location on machine (counters at customer’s scope)
Optional Accessories
- Powder loading system outside ORABS
- Laminar air flow system
- Glove ports with imported gloves
- Additional bung feeding system
- Dust extraction unit
- Industrial PC with 21 CFR part 11 compliance SCADA system
