Automatic Multi Head Volumetric Liquid Filling Machine
Overview

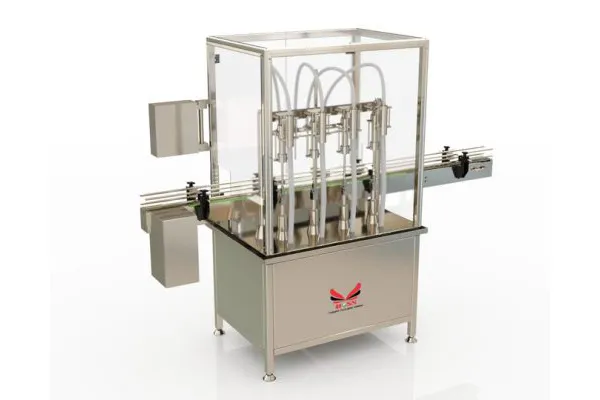

The Automatic Volumetric Liquid Bottle Filling Machine operates on a volumetric principle with diving nozzles. Designed to be compact and versatile, the unit is enclosed in a stainless steel body with an elegant matt finish. Key components include an S.S. Slat Conveyor, Reciprocating Nozzle with self-centering devices, and an SS Syringe. A standard feature is the “No Container, No Filling” system, ensuring precision and efficiency. The machine’s main drive and conveyor are powered by an A/C Motor with a synchronized, variable A/C Frequency Drive.
GenX’s Automatic Multi-Head Linear Volumetric Liquid Filling Machines are manufactured in-house using advanced digital electronic frequency AC drives. Our engineers design each machine to meet international industry standards, using robust materials for long-lasting performance. Furthermore, we offer highly competitive prices across the industry. Each machine follows GMP models, with customer satisfaction as our top priority.
Operation
Containers are conveyed along the SS Slat conveyor and positioned beneath the filling nozzles using an adjustable twin pneumatically operated stopper system. This system, combined with reciprocating nozzles, ensures precise container alignment under the nozzles to prevent liquid spillage. To minimize foaming, the adjustable nozzle moves upward gradually from the bottom of the bottle to the neck during the filling process. The dosing block, equipped with a hexagonal bolt beneath the syringes, allows easy adjustment of fill size for flexible and precise filling.
Key Features
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
| Output per Minute* | 8 to 10 bpm | 20 to 40 bpm | 30 to 50 bpm | 40 to 80 bpm | 50 to 90 bpm | 60 to 100 bpm |
| Number of Head / Syringe | 2 Head | 4 Head | 6Head | 8 Head | 10 Head | 12 Head |
| Main Machine | 1 HP / 415 V / 50Hz | 2 HP / 415 V / 50Hz | 3 HP / 415 V / 50Hz | 3 HP / 415 V / 50Hz (2 nos.) | ||
| Length of Conveyor | 5ft to 6ft | 8ft | 12ft | |||
Utility Requirement
Filling Range*** | 5ml to 1000ml with the help of Change Part |
Bottle Size ( Ø ) | 15mm Ø to 90mm Ø |
Direction of Movement | Left to Right |
Conveyor | 0.5 HP / 415 V / 50 HZ, Hindustan / Bonfiglioli make |
Height of Conveyor | 850 mm (+/- 50 mm) Adjustable |
A.C. Drive | 0.5 HP, Delta / Mitsubishi make |
Pneumatic Component | Janatics / SMC / Festo make |
Product Sensor | Leuze / Sick make |
Electrical Supply | 1 Phase + Neutral + Earthing |
Air Pressure | 6 Bar Pressure 0.5 CFM |
Input Specification
- * Depends on Container size, fill size, Neck diameter of container, and nature of liquid etc.
- **We can supply as per customer requirements.
- *** With help of change parts.
Salient Features
- ±1 % Filling accuracy on single dose.
- No Bottle No Filling System.
- Rigid vibration free construction for trouble free performance
- S.S. elegantly matt finished body.
- Drip free nozzle.
- Drip tray under the conveyor.
- Drain tray around the machine platform.
- Elegant and easy control panel for total control on operation.
- Diving nozzle device.
- Minimum charge overtime, from one size to another container or fill size.
- Bottle Stopping arrangement through Pneumatic system.
- Safety guard for conveyor gearbox, motor and pneumatic cylinders.
- Inbuilt protection against over current, voltage fluctuation, short circuit in A.C. frequency drive.
- The unit is made compact & versatile as per GMP norms.
