Semi-Automatic 1 Head Servo Filling Machine
Overview
Automatic Gear Pump Filling Machine

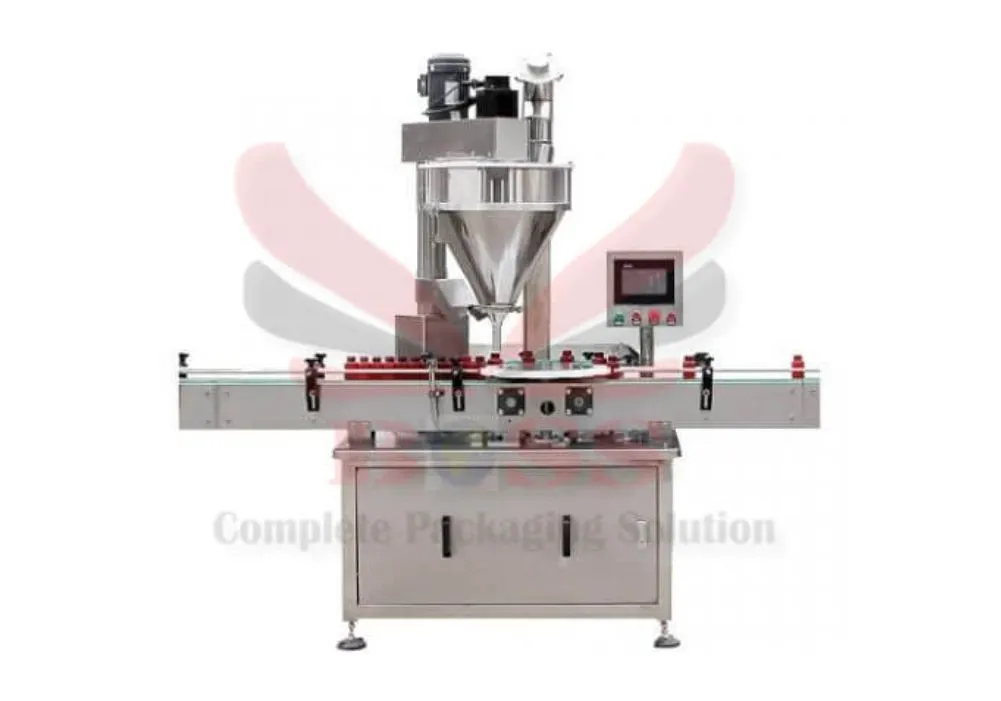

The Automatic Auger-Type Powder Filling Machine is precisely constructed on a stainless steel (SS) frame, fully enclosed with stainless steel panels. Doors are integrated into the design to facilitate easy servicing and maintenance. The unit is compact and versatile, with an elegant matt-finish stainless steel body for durability and a clean, professional appearance.
Operation
Dried, sterilized, and siliconized bottles are fed via the infeed Turn Table onto the infeed SS conveyor belt at the desired speed. As each bottle reaches the filling head, it is secured by a pneumatic bottle holder. A bottle sensor detects the bottle’s presence, triggering the magnetic clutch mounted on the auger shaft to start rotation. This rotation dispenses the pre-set amount of powder into the bottle through the auger, with the fill time controlled by a Timer. After the first bottle is filled, the pneumatic bottle holder releases it, allowing it to proceed along the conveyor for the next operation.
Key Features
Servo PLC based Operation
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
Filling Range*** | 5 Gms to 500 Gms |
Output/Hour* | 1500-3000 containers |
Direction of Movement | Left to Right |
Number of Head / Syringe | 1 Nos. |
Starrier Motor | 60W RotoQ |
Conveyor | 0.5 HP / 415 Volts / 50 Hz. Hindustan / Bonfiglioli make |
Servo Motor | 400W / 750W Mitsubishi make |
Height of Conveyor | 850 mm to 900 mm Adjustable |
AC Drive | 0.5 HP Mitsubishi / Delta make |
PLC | Mitsubishi / Delta make |
HMI | Mitsubishi / Delta make |
Pneumatic Parts | Janatics / SMC / Festo make |
Sensors | Leuze / Sick make |
Length of Conveyor | 6ft |
Height of Conveyor | 850 mm to 900 mm Adjustable |
Change parts required | (a) Auger (b) Funnel |
Input Specification
Container Neck Diameter** | Minimum 22 mm*** |
Container Size** (Round Shape) | Ø 28 mm to Ø 100 mm Respectively height 58 mm to 240 mm (Height option for other bottle height available) |
Container Size**(Flat / Square) | 15mm to 100 mm (Length) Respectively 10mm to 50 mm (Width) Respectively height 58 mm x 240 mm (Height option for other bottle height available) |
Utility Requirement
Electrical Supply | 3 Phase + Neutral + Earthing |
Electrical Load | 1.5 KW |
Salient Features
- Servo Based PLC with HMI Control.
- Powder Level Sensor.
- Automatic with filling range from 5 Gms to 500 Gms
- A unit to fill varNo container no fill systemiety of liquid and can be used for various types of container.
- Accuracy ± 1 % in single doze.
- Body covered with SS sheet.
- All contact parts SS 316.
- Acrylic Cabinet.(Optional)
- A unit to fill variety of fine and granulated powder and can be used for various type of containers.
- Minimum change over time of change parts
- Safety guards for all doors, motor & conveyor.
- The unit is made compact & versatile as per GMP norms.
