High Speed Ampoule / Vial Labelling
Overview

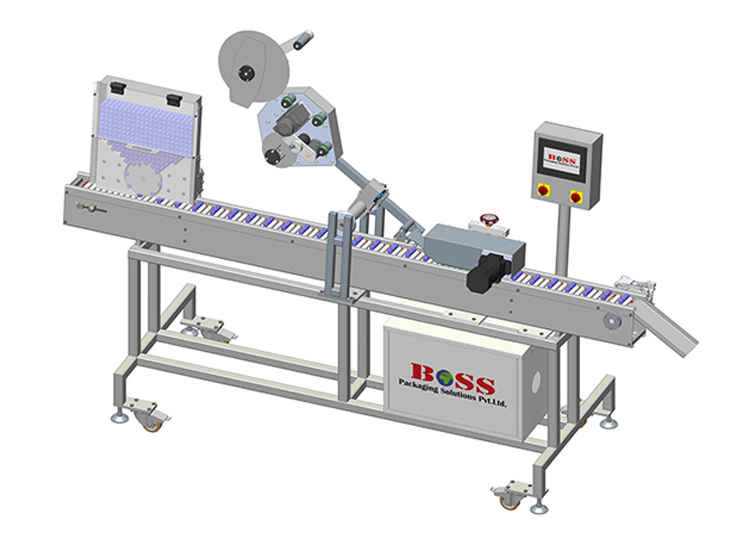

Sticker Lebelling Machine
The ampoule sticker labeling equipment is equipped with a user-friendly touch-screen HMI and operates on a PLC-based system, making it suitable for overlap labeling as well as complete and partial wrap-around applications. With an impressive output of 150 ampoules per minute, its compact horizontal design offers a space-saving solution for various production environments.
This advanced ampoule labeling machine is capable of efficiently labeling small tubes or eye drop bottles. An enhanced version may include features such as speed control for optimized operation. The labeling process begins with ampoules being loaded onto a hopper, from where they are transferred via a wire mesh conveyor to a feed worm. The feed worm rotates the ampoules and delivers them to the star wheel, which then directs them to the labeling station. Here, each ampoule receives its label before proceeding to the pressing unit. Finally, the labeled ampoules are collected onto an out-feed collection tray. Additionally, this ampoule sticker labeling machine is a GMP-compliant model, ensuring adherence to good manufacturing practices.
Key Features
High speed 100/200/300
Servo PLC based Operation
Accurate label placement
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
Output/ Minute* | Up to 120 Ampoule/Vials |
Direction of Movement | Left to Right |
Electric Specification** (Main Motor) | 0.50 HP / 415 V / 50 HZ |
Electric Specification** (Servo Motor) | 400/750 Watt Panasonic with Driver- 1 No. |
PLC | Mitsubishi / Delta make |
HMI | Delta make Touch Screen 3.5 inch |
A.C. Drive | Delta / Mitsubishi make |
Conveyor Motor | Panasonic / RotoQ / Bonfiglioli / Hindustan |
Hopper Motor | Bonfiglioli/ Hindustan / RotorQ |
Product Sensor | Leuze / Sick / Panasonic |
Label Accuracy | +/- 1 mm |
Label Gap Sensor | Leuze / Sick / Panasonic |
Height of Conveyor | 850 mm ± 50 mm Adjustable |
Utility Requirement
Electrical Supply | 1 Phase + Neutral + Earthing |
Electrical Load | 1 KW |
Air Pressure | Not Required |
Salient Features
- Label release mechanism.
- PLC controlled product sensor to sense the product.
- Break assembly to avoid variation during releasing of roll.
- PLC controlled label gap sensor to sense the gap between two labels.
- PLC base electronic control system for total operation of the machine with programmable L.C.D display.
- Dispensing unit to dispense labels.
- Reel mechanism (Size: 305 mm) to hang the roll.
- Machine made from SS 304
- Electronics/Electricals Delta / Panasonics / Leuze / Bonfiglioli / Hindustan.
- 6 ft. Roller Conveyor to convey the product
- Hoper Assemble for automatic product feeding.
