Hologram / Stand Alone Labeler
Overview
Semi Automatic Sticker Lebbeling Machine

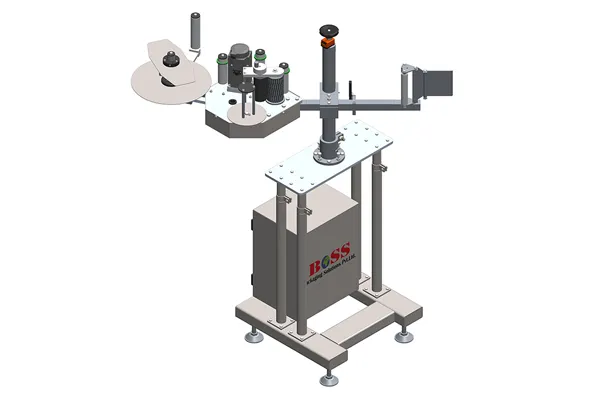

The Gnex Hologram Applicator is a compact and versatile machine designed for ease of operation, offering multiple labeling formats for containers of various sizes and shapes. This machine can label up to 300 bottles per minute.
Key Features
High speed 100/200/300
Servo PLC based Operation
Accurate label placement
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
Dispenser Motor (750 Watt Servo / Stepper) | Delta / Mitsubishi |
PLC | Delta / Mitsubishi |
HMI (TP02 /TP04) | Delta / Mitsubishi |
Product Sensor | Leuze / Sick / Panasonic |
Label Gap Sensor | Leuze / Sick / Panasonic |
Speed (60 to 300 PPM) | Depends on the label size |
ROLL OD | 280MM |
LABEL SIZE | Min 10 x 10mm and Max 20 x 90 mm |
MOC | SS 304 |
LABEL MATERIAL | Paper / Hologram |
WEIGHT | 100 KGS |
Utility Requirement
Electrical Supply | 1 Phase + Neutral + Earthing |
Electrical Load | 415 v, AC / 50 HZ. |
Salient Features
- Label Dispensing Mechanism (Servo Motor Based)
- PLC controller with touch screen.
- Break assembly to avoid variation during releasing of roll.
- Structure of S.S. 304.
- Reel mechanism (Size: 305mm) to hang the roll.
- Minimum product change over setting time.
