Rotary Bottle Sticker Labelling Machine

Overview

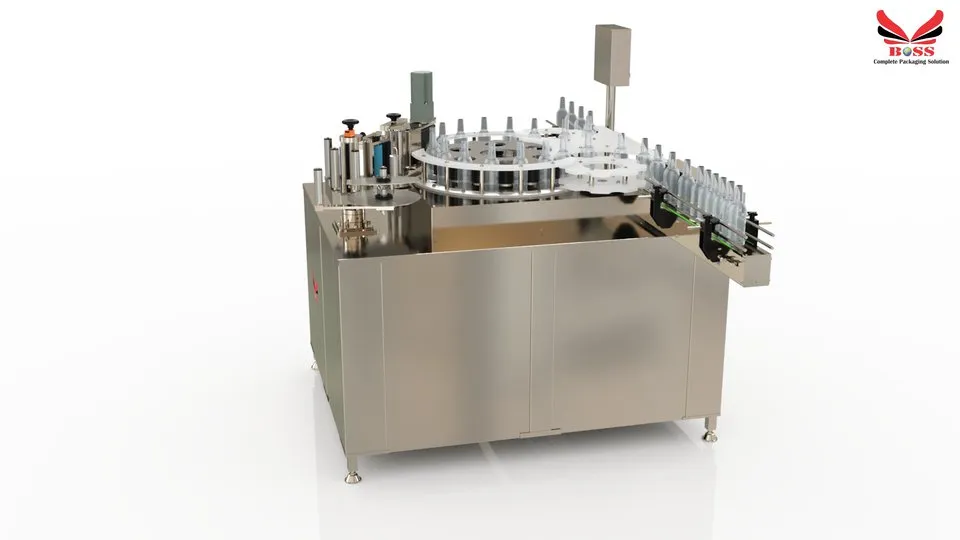

Glass Bottle Sticker Labeling Machine

The filled and sealed bottles are conveyed along a conveyor system that includes a bottle separator attachment, which effectively separates each bottle from the continuous flow. A sensor detects the presence of a bottle and sends a command to activate a stepper or servo motor to release the label. Once a label is applied, a gap sensor signals the motor to stop, ensuring precise labeling. Additionally, a brush mechanism presses the label firmly against the bottle to eliminate any trapped air between the label and the surface. After this labeling cycle is completed, the operation is finished, and the conveyor moves the bottle forward for the next stage.
Operation
The Automatic Vertical Sticker Labeling Machine is a highly user-friendly, high-speed labeling solution featuring a star plate mechanism. It is designed for full or partial wrap-around labeling on various sizes of round containers. The machine’s design incorporates change parts, allowing for easy adjustments and customization to accommodate different container sizes. This efficient labeling system ensures precise and consistent application, making it ideal for various industrial applications.
Key Features

High speed 100/200/300

Servo PLC based Operation

Accurate label placement

No change parts requirement

Very less down time for change over

One Touch Speed Synchronization

Specification
Output/Hour*Up to 10,000 to 15000 bottles
Direction of MovementLeft to Right
ControllerPLC with HMI Base Controller
PLCDelta / Mitsubishi make
HMIDelta / Mitsubishi make Touch Screen 3.5inch
Main MotorPanasonic / RotoQ / Bonfiglioli / Hindustan
A.C. DriveDelta / Mitsubishi make
Product SensorLeuze / Sick / Panasonic
Low Bottle Feed SensorLeuze / Sick / Panasonic
Label Gap SensorLeuze / Sick / Panasonic
Conveyor Motor0.5 HP / 415 V / 50 HZ Bonfiglioli / Hindustan make 1No.
Wrapping Motor120W RotoQ
Servo Motor750Watt Mitsubishi with Driver- 1 No.
Output Bottle Jam SensorLeuze / Sick / Panasonic
Label Accuracy+/- 1 mm
Height of Conveyor850 mm to 900 mm Adjustable
Machine Dimensions**2000 mm (L) x 1200 mm (W) x 1200 (H) Approx.

Input Specification

Roll DiameterMax 300 mm & Core ID 75 mm
Space between Two LabelMin. 3 mm anti clock wise

Utility Requirement

Electrical Supply3 Phase + Neutral + Earthing
Electrical Load2.5 KW
