Overview

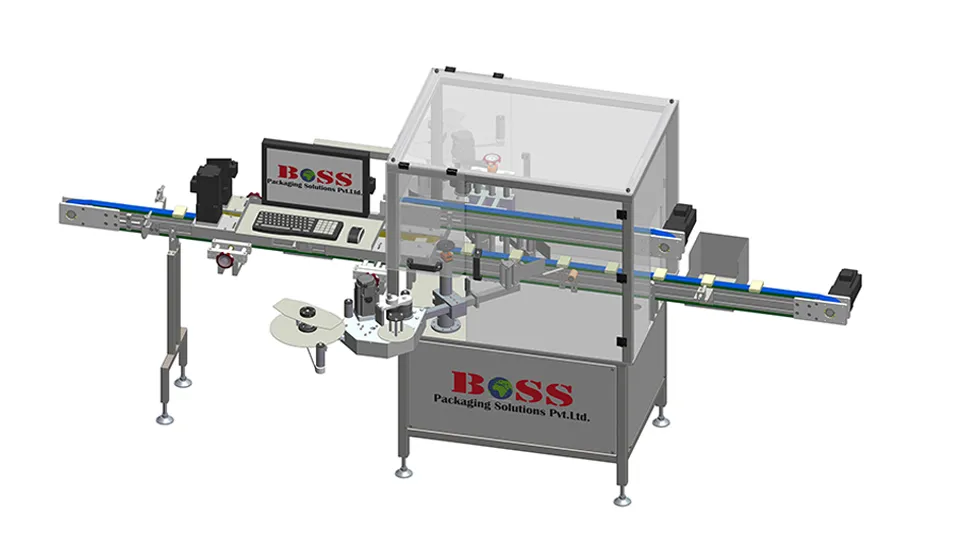

The Tamper Evident Labeling Machine is a high-performance solution designed for precise and automatic labeling on each side of cartons, ensuring that all sealed cartons leave the machine with a unique identity. This machine is capable of handling a wide range of carton sizes at impressive speeds, processing between 60 to 300 cartons per minute.
One of the standout features of this machine is its track and trace capability, which allows cartons to be tracked throughout the increasingly complex global supply chain for pharmaceutical products. This functionality enhances product security and compliance, making it an essential tool for businesses looking to maintain quality and traceability in their operations. Whether for pharmaceuticals or other industries requiring tamper-proof packaging, this labeling machine delivers reliability and efficiency.
Key Features

High speed 100/200/300

Servo PLC based Operation

Accurate label placement

No change parts requirement

Very less down time for change over

One Touch Speed Synchronization

Specification
OutputUp to 150PPM
Direction of MovementLeft to Right
ControllerMicroprocessor based control
PLCDelta /Mitsubishi make
HMIDelta /Mitsubishi make Touch Screen 3.5 inch
A.C. DriveDelta / Mitsubishi make
Conveyor MotorPanasonic / RotoQ / Bonfiglioli / Hindustan
Electric Specification** (Conveyor Motor & Gear Box)0.5 HP / 415 V / 50 HZ Hindustan / Bonfiglioli make
Electric Specification** (Servo Motor)750 Watt Panasonic/ Mitsubishi/Sigma with Driver- 1 No.
Separator MotorPanasonic / RotoQ / Bonfiglioli / Hindustan
Product SensorLeuze / Sick / Panasonic
Label Gap Sensor
Leuze / Sick / Panasonic
Label Accuracy
+/- 1 mm
Conveyor type
Slat Chain- 6ft Length,
Height of Conveyor
850mm (+/-50 mm) Adjustable

Label Specifications

Length**
20 mm to 140 mm

Utility Requirement

Electrical Supply
1 Phase + Neutral + Earthing
Electrical Load
1 KW

Salient Features

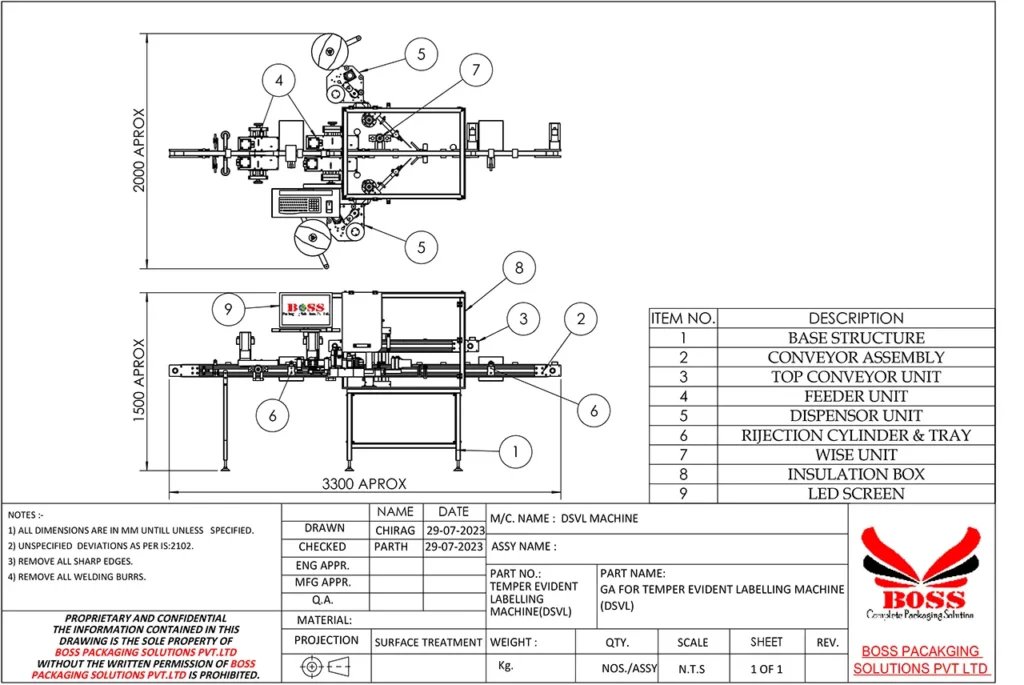

Dimension
