Overview

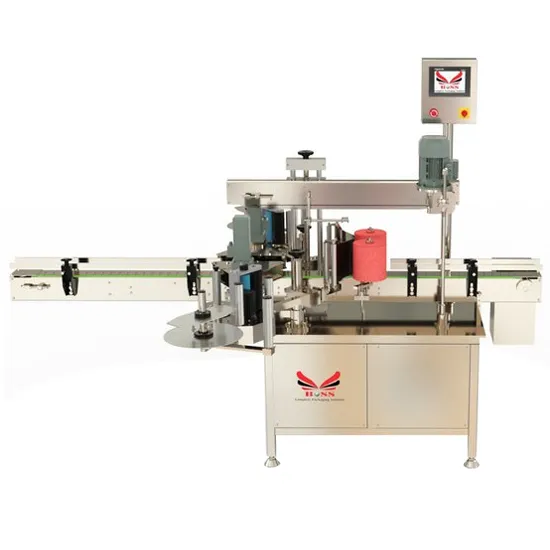

Automatic Sticker Labelling Machine
The Automatic Vertical Sticker Labeling Machine is designed for user-friendly operation and is ideal for full or partial labeling on various sizes of flat or rectangular containers. This automatic model features a roller spacing device that simplifies operation, eliminating the need for change parts. Its intuitive design ensures efficient labeling, making it suitable for a wide range of industries and applications.
Operation
The filled and sealed bottles are conveyed on a conveyor system equipped with a bottle separator attachment, designed to separate bottles from the continuous movement. A sensor detects the presence of each bottle, triggering a command to operate a stepper or servo motor to release the label. Once a label is applied, a gap sensor signals the motor to stop during the labeling process. Additionally, a brush mechanism is included to press the label firmly and remove any air trapped between the label and the bottle. After completing this cycle, the labeling operation is finished, and the conveyor moves the bottle forward for the next operation.
Key Features
Servo PLC based Operation
Accurate label placement
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
Output | 15-20 BPM |
Direction of Movement | Left to Right |
Controller | PLC based control |
A.C. Drive Separator | 0.25HP Delta / Mitsubishi |
PLC | Delta /Mitsubishi make |
HMI | 3.5” Screen Delta / Mitsubishi make |
Separator | 60W RotoQ no 1 |
Product Sensor | Leuze / Sick / Panasonic |
Label Gap Sensor | Leuze / Sick / Panasonic |
Power Consumption | Conveyor motor 0.5 HP / 415 V / 50 HZ, Hindustan / Bonfiglioli make |
Servo motor 400W, Mitsubishi / Panasonic / Sigma make | |
Wrapping Guide | Roller/Wrapping Belt |
Label Accuracy | +/- 1 mm |
Pneumatics | Janatics/SMC |
Height of Conveyor | 850 mm (+/- 50 mm) Adjustable |
Length of Conveyor | 6ft long (SS Slat Chain Conveyor) |
Electrical Supply | 1 Phase + Neutral + Earthing |
Electrical Load | 2 KW |
Air Supply | 6-8 Bar |
Salient Features
- High Production Speeds.
- Servo PLC Based operation.
- Accurate label placement.
- No change parts requirements.
- Very less down time for change over.
- Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.
