Top Side/Pouch Labeler
Overview
Automatic Sticker Labeling Machine Exporters

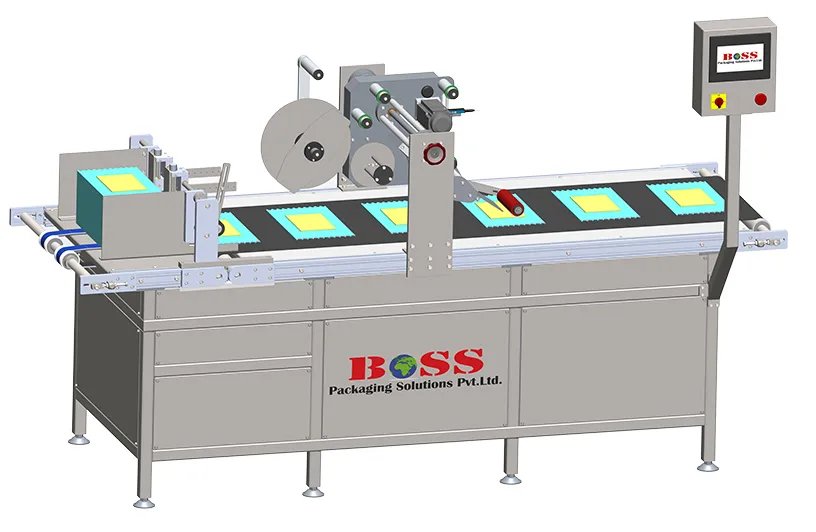

The Automatic Horizontal Sticker Labeling Machine is designed for exceptional user-friendliness, making it ideal for various labeling applications. This machine effectively handles full or partial labeling on a range of flat or rectangular containers. The automatic model features a roller spacing device that simplifies operation, allowing for easy adjustments without the need for any change parts. Its intuitive design ensures efficient and reliable labeling, catering to diverse industrial needs.
Operation
The filled and sealed bottles are conveyed along a conveyor system that includes a bottle separator attachment, which effectively separates each bottle from the continuous flow. A sensor detects the presence of a bottle and sends a command to activate a stepper or servo motor to release the label. Once a label is applied, a gap sensor signals the motor to stop, ensuring precise labeling. Additionally, a brush mechanism presses the label firmly against the bottle to eliminate any trapped air between the label and the surface. After this labeling cycle is completed, the operation is finished, and the conveyor moves the bottle forward for the next stage.
Key Features
Servo PLC based Operation
Accurate label placement
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
| Output/Hour* | Up to 60 BPM |
| Direction of Movement | Left to Right |
| Controller | PLC with HMI based control |
| PLC | Mitsubishi / Delta make |
| HMI | 3.5”Screen, Delta / Mitsubishi make |
| A.C. Drive Conveyor | 0.5 HP Mitsubishi / Delta make |
| A.C. Drive for Feeder | 0.25HP, Delta /Mitsubishi No. 2 |
| Feeder Motor Or Worm Motor | Panasonic / RotoQ / Bonfiglioli / Hindustan |
| Conveyor Motor | 0.5 HP / 415 V / 50 HZ, Panasonic / RotoQ / Bonfiglioli / Hindustan |
| A.C. Drive for Top Conveyor Motor | 0.5 HP, 415 V / 50 HZ, Delta / Mitsubishi |
| Pressing Device Motor | 0.25 HP / 415 V / 50 HZ |
| Servo Motor | 400W, Mitsubishi/Sigma make |
| For Flat Container | Bottle movement through Top Drive |
| Product Sensor | Leuze / Sick / Panasonic |
| Label Gap Sensor | Leuze / Sick / Panasonic |
| For Round Container | Bottle movement through Side Drive |
| Label Accuracy | +/- 1 to 2 mm |
| Conveyor Length | 6-8ft |
| Height of Conveyor | 850 mm (+/- 50mm Adjustable) |
| Top Conveyor Height adjustment | Boss makes height adjustment assemble |
| Feeder Adjustment | Boss make height and deep adjustment assemble |
Input Specification
| Roll Diameter | Max 300 mm & ID 75 mm |
| Space between Two Label | Min. 3 mm anti clock wise |
Utility Requirement
| Electrical Supply | 1 Phase + Neutral + Earthing |
| Electrical Load | 2 KW |
Salient Features
- Label release mechanism.
- PLC controlled product sensor to sense the product.
- Break assembly to avoid variation during releasing of roll.
- HMI Touch Screen to operate machine easily.
- Feeder or Worm Assemble to hold bottle proper and generate the unique distance between two bottles.
- Wrapping unit for wrap around Labeling.
- Wrapping guide with X & Y direction setting.
- Top Conveyor to hold bottle from top and bottom.
- 6-8 Ft. Conveyor to convey the product.
- PLC controlled label gap sensor to sense the gap between two labels.
- PLC base electronic control system for total operation of the machine with programmable L.C.D display (P.L.C.) with programming facility
- Specially designed drive mechanism.
- Dispensing unit to dispense labels.
- Reel mechanism (Size: 305 mm) to hang the roll.
- Machine made from S.S. 304
- A.C. frequency variable drive for variable speed with constant torque
