Wrap Around Labelling with Star Wheel
Overview

Wrap around labeling machine Manufacturer

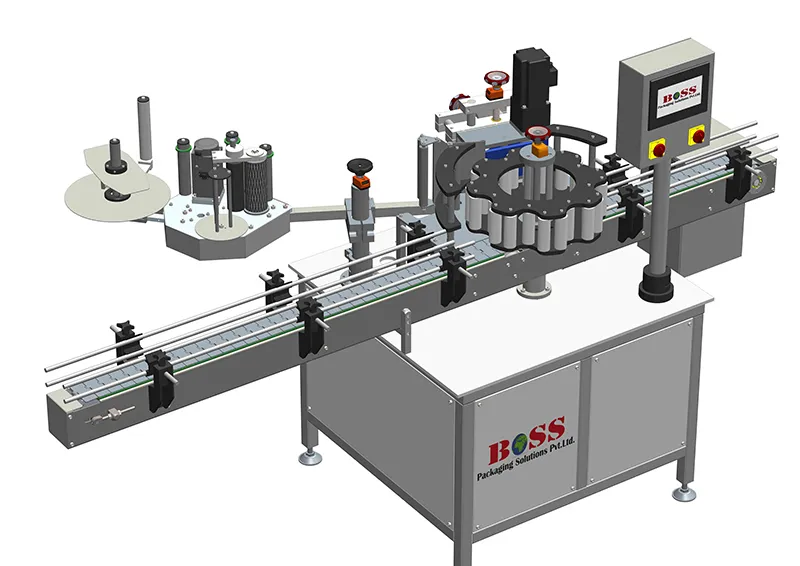

The Automatic Wrap-Around Sticker Labeling Machine is highly user-friendly, featuring a colorful touch screen for easy operation and a servo-based label control system. This machine is designed for full or partial labeling on various sizes of round bottles, jars, and tins. It includes an automatic bottle separator to facilitate efficient operation.
As filled and sealed bottles are conveyed along the conveyor, the bottle separator attachment separates them from the continuous movement and guides them with a star plate. A sensor detects the product, prompting the servo motor to release the label. The wrapping guide then applies the label onto the bottle. Once the labeling cycle is complete, the conveyor moves the bottle on for the next operation.
Key Features
High speed 100/200/300
Servo PLC based Operation
Accurate label placement
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
Output/Hours | 3000 to 4000 |
PLC | Mitsubishi make |
HMI | Mitsubishi Make Touch Screen 3.5 inch |
Servo Motor | 750 Watt Mitsubishi with Driver- 1 No |
Separator Motor | Panasonic / RotorQ / Bonfiglioli / Hindustan |
Conveyor Motor | 0.5HP Bonfiglioli / Hindustan make 1Nos. |
A.C. Drive | Mitsubishi Make |
Product Sensor | Leuze / Sick / Panasonic |
Label Gap Sensor | Leuze / Sick / Panasonic |
Electrical Supply | 230 V AC / 50 Hz stabilized. |
Label Roll Outer Diameter | Maximum 300 mm |
Label Core ID | 76 mm |
Labeling Accuracy | +1 mm |
Working Height | 850 mm (+/-50 mm) |
Conveyor Length | 6 to 10 ft (Depends on Application) |

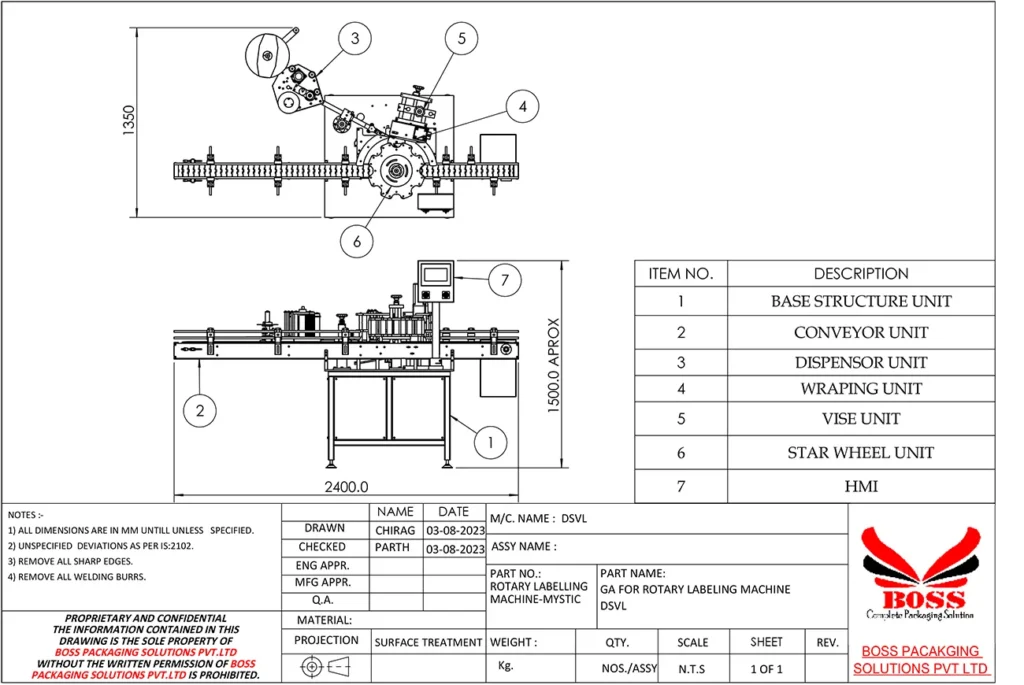

Dimension
