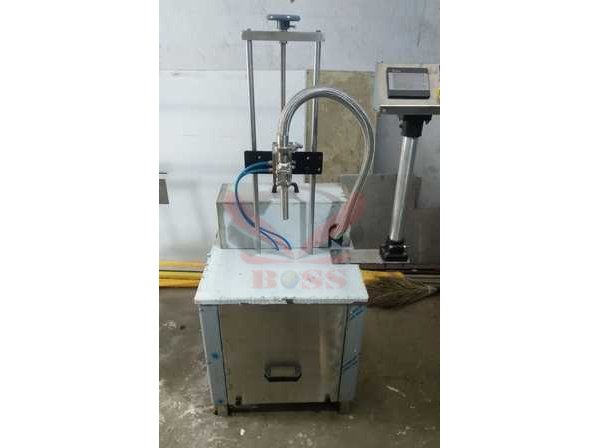

Semi-Automatic 1 Head Servo Filling Machine
Overview
Automatic Gear Pump Filling Machine
Semi-automatic Servo Base Gear Pump filling machine is precision built on SS frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Working on volumetric principle, the unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.
Operation
Containers have to place manually below the filling nozzles at platform of machine, where PLC based operated gear pump fill desire preset volume in container. Bottle guide is provided for precisely match for centering of container below nozzles to avoid spillage of liquid on container. The filling range set by PLC control. The gear pump rotation controlled by the PLC.
Key Features
Servo PLC based Operation
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
| Filling Range | 50 ml to 5000 ml |
| No. of Head | 1 Nos. |
| Output per Minute | 12 to 14 per minute based on 500ml |
| Motor | Mitsubishi make (400W/ 750W) |
| PLC | Mitsubishi / Delta Make |
| HMI | Mitsubishi / Delta Make |
| Filling System | Servo gear pump with Load cell Base (Weight base) |
| Structure | SS 304 |
| Contact Parts | SS 316 |
Utility Requirement
| Electrical Supply | 1 Phase + Neutral + Earthing |
| Electrical Load | 1.5 KW |
| Air Required | 6Kg Pressure |
Salient Features
- ±1 % Filling accuracy on single dose.
- Operating by PLC with HMI.
- Rigid vibration free construction for trouble free performance.
- A unit to fill variety of liquid and can be used for various types of container.
