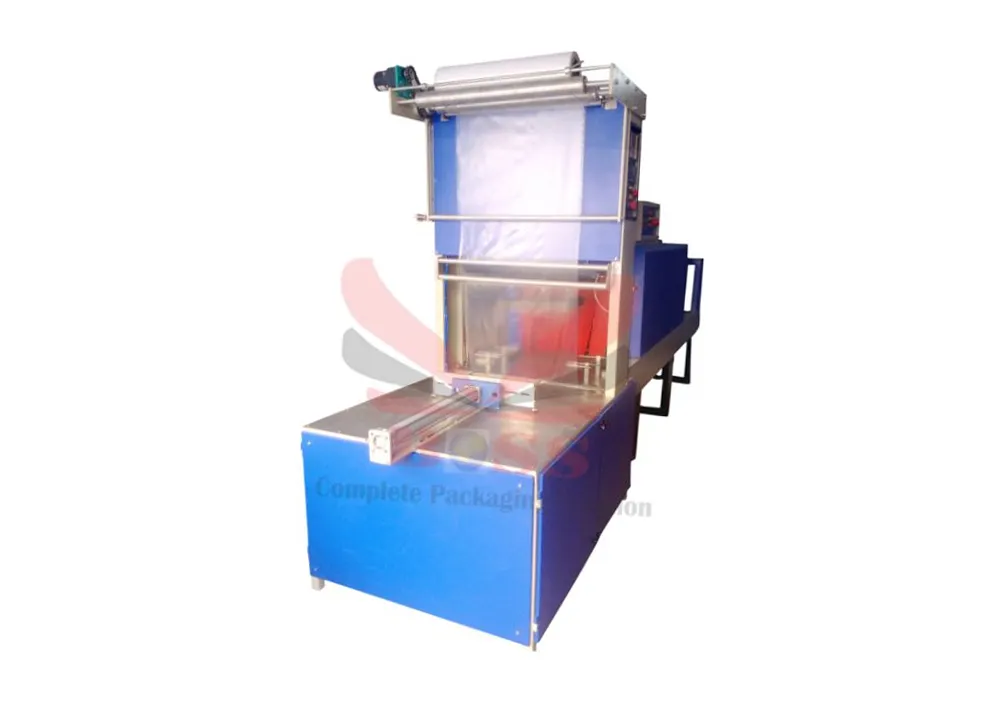

Semi Automatic Shrink Wrapping Machine
Overview
Shrink Sleeve Machine for Bottles
The Semi-Automatic Shrink Wrapping Machine features a web sealer and shrink tunnel, making it suitable for a wide range of industries, including food, pharmaceuticals, cosmetics, printing, and hardware. This machine is capable of collating various containers, such as round or square bottles, cans, gable cartons, and tetra cartons.
Designed for group packing, the semi-automatic web sealing machine can accommodate bottle groups of 6, 12, 18, or 24, depending on the requirements. This machine operates manually or pneumatically; users need to align the bottles before initiating the sealing and cutting process. Once sealed, the bottles are wrapped, and the grouped matrix enters the shrink tunnel. Finally, the shrunk-wrapped bottle group exits onto a roller table for efficient handling.
Specification
Model | SEMI-AUTO SHRINK WRAP |
Sealing type | Web sealing |
Power supply | 440v x 50-60 hz x 3 hp |
Max product size | 420(l) x 400(w) x 300(h) mm |
Max packing capacity | 3 – 4 packs per minute( Depends on group Matrix ) |
Film type | Polyethylene (pe) film |
Max film size | 600 (width) x 280mm(outer diameter) |
Power consumption | Max. 14 kw |
Tunnel oven size | 1220mm(l) x 760(w) x 520(h) mm |
Tunnel conveyor speed | Variable, controlled by frequency converter |
Wiremesh tunnel conveyor | SS Wiremesh conveyor |
Working height | 850 ± 50 mm |
Air pressure | 6 bar |
Sealing knife | Durable “v” shape sealing knife |
Machine material | Mild steel powder coated |
Max Machine weight | 390 kg |
Machine dimensions | 4000 x 2400 x 2000 mm |
Pneumatic Components | Janatics / SMC. |
Conveyor motor | Hindustan / Bonvario / Rotomotive. |
Technical Features for Web Sealer
- Semi-automatic shrink wrapping machine including web sealer and shrink tunnel. It is widely used in food, pharmaceutical, cosmetics, printing, hardware, and other industry.
- This machine can collate bottles (round or square), cans, gable cartons, and tetra cartons.
- Bottles can be collated faster by a stable collating device and never fall down.
- Output roller table.
- Adopt durable "v" shape alloyed sealing knife
- Safety cover is available.
- Cooling fan for better shrinking of PE film
- Size 27” Sealing with Hot bar system.
- With Pneumatic Pusher (Janatics / SMC) 6 Bar Air Pressure Required.
- With Digital Controller of Multispan.
- Double blower For Cooling
